PP Blend PureAir Potassium Permanganate and Activated Carbon Mixed Media is a dual-action gas-phase filtration media designed to tackle corrosive and toxic gases commonly found in pulp & paper plants and petrochemical applications. Formulated from a precise 50/50 blend of PureAir 8 and Sulphasorb 2™, it combines the strong oxidizing capability of potassium permanganate with the broad adsorption capacity of activated carbon, delivering higher removal efficiency and longer media life for your system. Explore the details in this overview from LVT Vietnam.

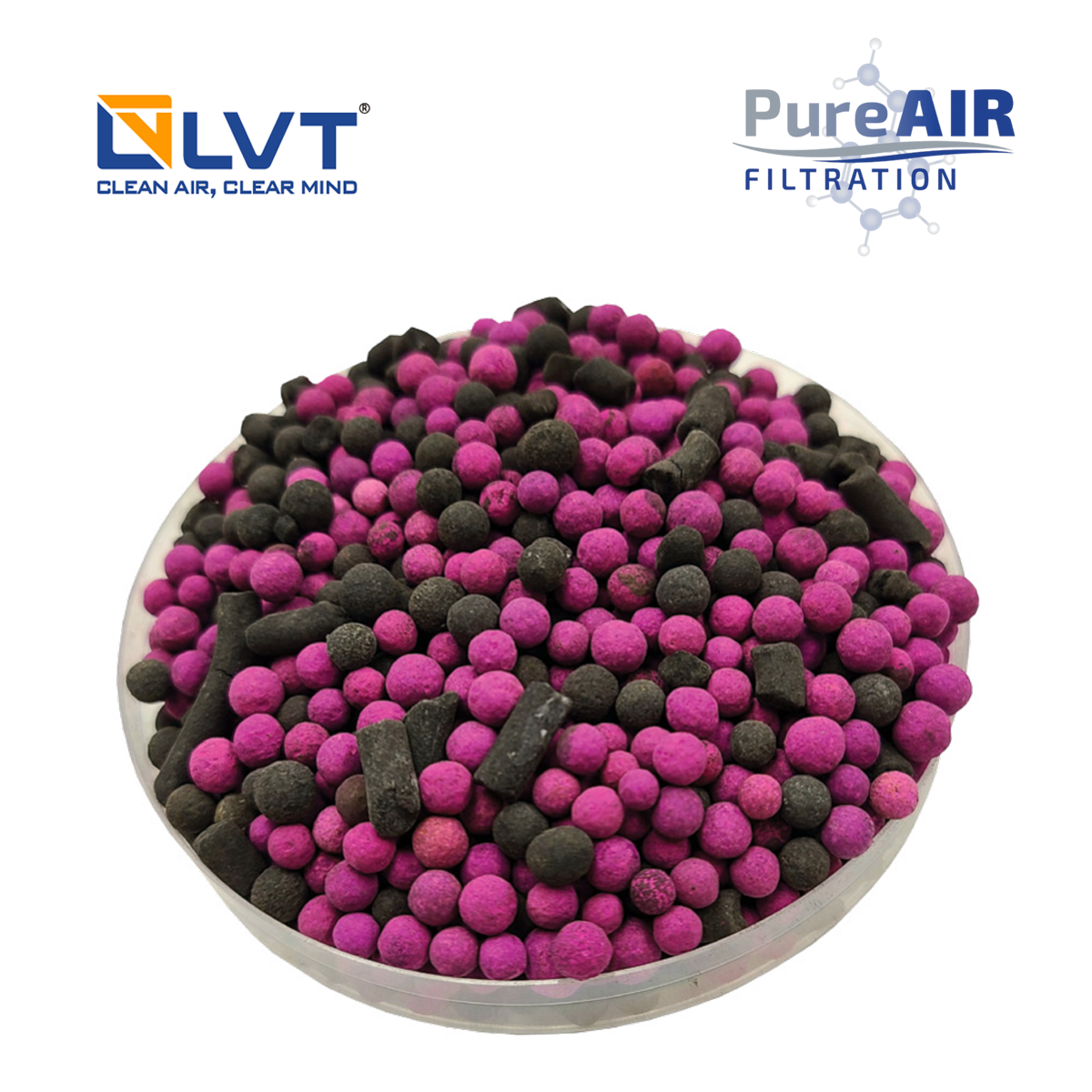

Overview of PureAir PP Blend Mixed Odor Adsorbent Media

Info on Potassium Permanganate and Activated Carbon Odor Media

PureAir’s PP Blend is a 50/50 mixture of potassium permanganate–based media (PureAir 8) and acid-gas removal media (Sulphasorb 2™). It is specifically designed to remove corrosive gases typically found in the pulp & paper industry, as well as petrochemical and refining operations.

Note: PP Blend media meets UL certification requirements.

After the trays are filled with PP Blend media, they are inserted into the unit to perform gas adsorption and odor removal.

Construction and Removal Capability of PP Blend

The PP Blend mixed media combines the properties and benefits of PureAir 8 and Sulphasorb 2™:

PureAir 8: Spherical pellets with very fine pores, manufactured from activated alumina and binders, impregnated with potassium permanganate to provide optimal adsorption and oxidation for multiple gas-phase contaminants.

PureAir Sulphasorb 2™: Spherical or cylindrical high-grade activated carbon pellets with fine pores for acid gas removal.

Removal capability of PP Blend media:

Hydrogen sulfide: 19.0% by weight
Sulfur dioxide: 7.0% by weight
Nitric oxide: 2.5% by weight
Nitrogen dioxide: 14.95% by weight
Formaldehyde: 1.5% by weight
Chlorine: 5.9% by weight

LVT odor control systems are not only highly efficient but also designed for customer convenience. The smart modular design allows simple removal and replacement of internal media, significantly reducing maintenance costs and extending system life. Below are real project photos from LVT installations.

Technical Specifications of PureAir PP Blend Mixed Odor Adsorbent Media

Media size: 4 mm
Bulk density: 735 kg/m³ (46 lbs/ft³)
Surface area: 350 m²/g
Typical moisture: 15–20%
Crush strength: 35–70 lbs and 40–60 lbs
Abrasion rate: max. 4%
Relative pressure drop: see Curve B*
Permanganate content: minimum 8%
CTC value: 70%

This media is manufactured by PureAir Filtration (USA), with more than 40 years of experience in gas-phase filtration and continuous testing to develop effective odor adsorbent media for industrial facilities. LVT Vietnam is proud to be the official PureAir distributor in Vietnam. We are always available to answer questions and provide the most optimized solutions.

Contact us today for consultation and installation!
